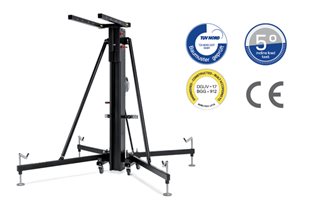

The ML4 is your "extra duty” lifting partner that packs 270 kg (595.95 lbs) of loading capacity into 6.5 m (21.33’). Its durable construction and reliable operation deliver the safety you require when lifting your heaviest loads.
Key Benefits:
- Rubber pads on outriggers provide increased traction and surface protection
- Height adjustable feet feature high profile, trapezoidal threading (0.45 m / 1.48’)
- 0.5 m & 1 m (1.64’ & 3.28’) fork lengths with allowable load vs. load position indicators
- Unique pin locking system and steel pulleys protect your hardware against damage and ensure safe operation at all times
- 5 degree incline tested in accordance with DIN 58950
- Base is pre-equipped with attachment points for horizontal installation of wheels for easy transport
- Level indicator
- Height indicator
- Optional winch cover
- DGUV-17
- TUV Nord certified
ML4 6527
Load: 270 kg (595.95 lbs)
Weight: 128 kg (282.2 lbs)
Max. Height: 6.5 m (21.33’)
Min. Height: 1.98 m (6.5’)
Footprint: 1.97 x 1.82 m (6.46’ x 5.97’)
